Put 48 microphone inputs right where the band plays.

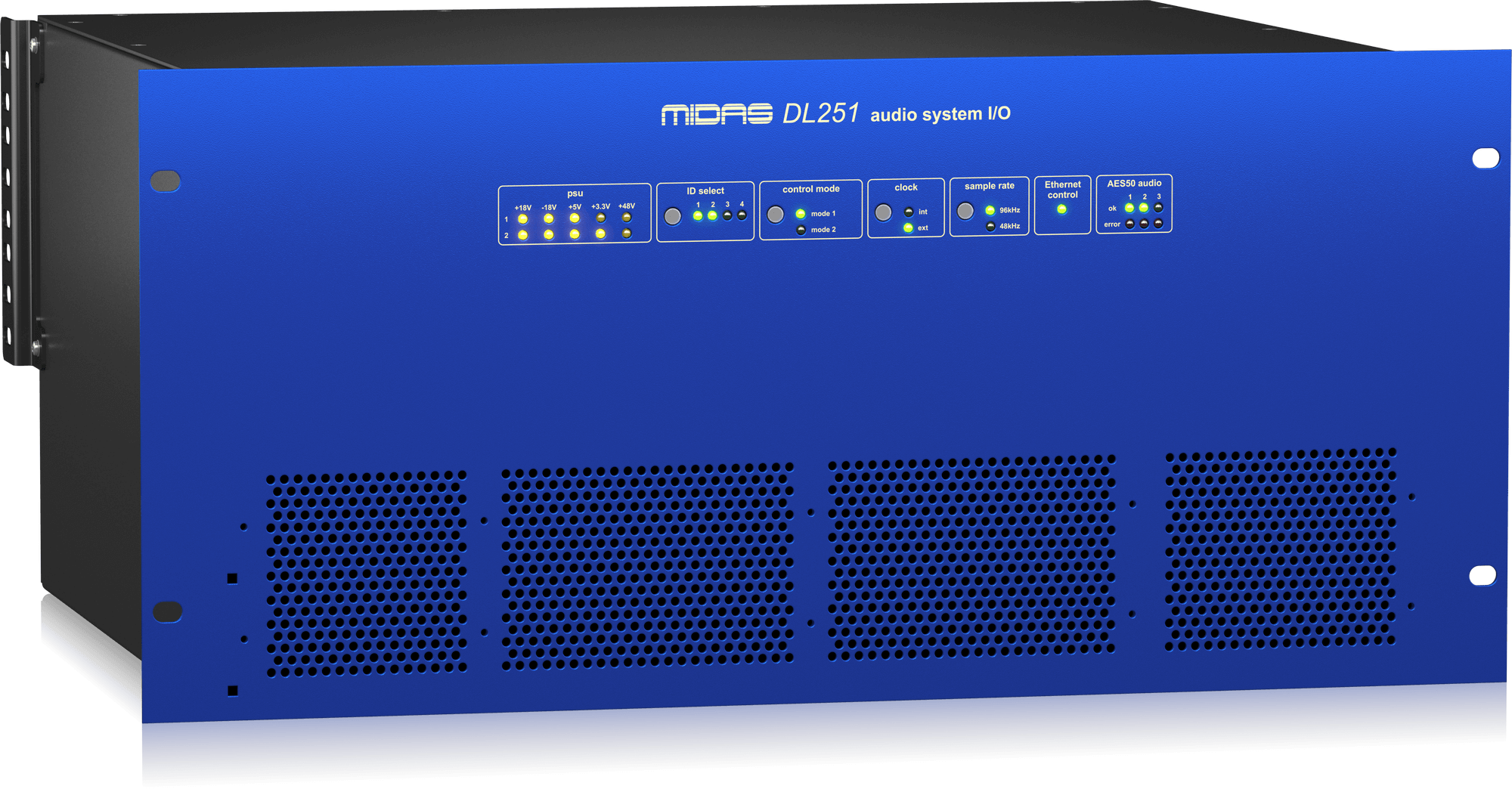

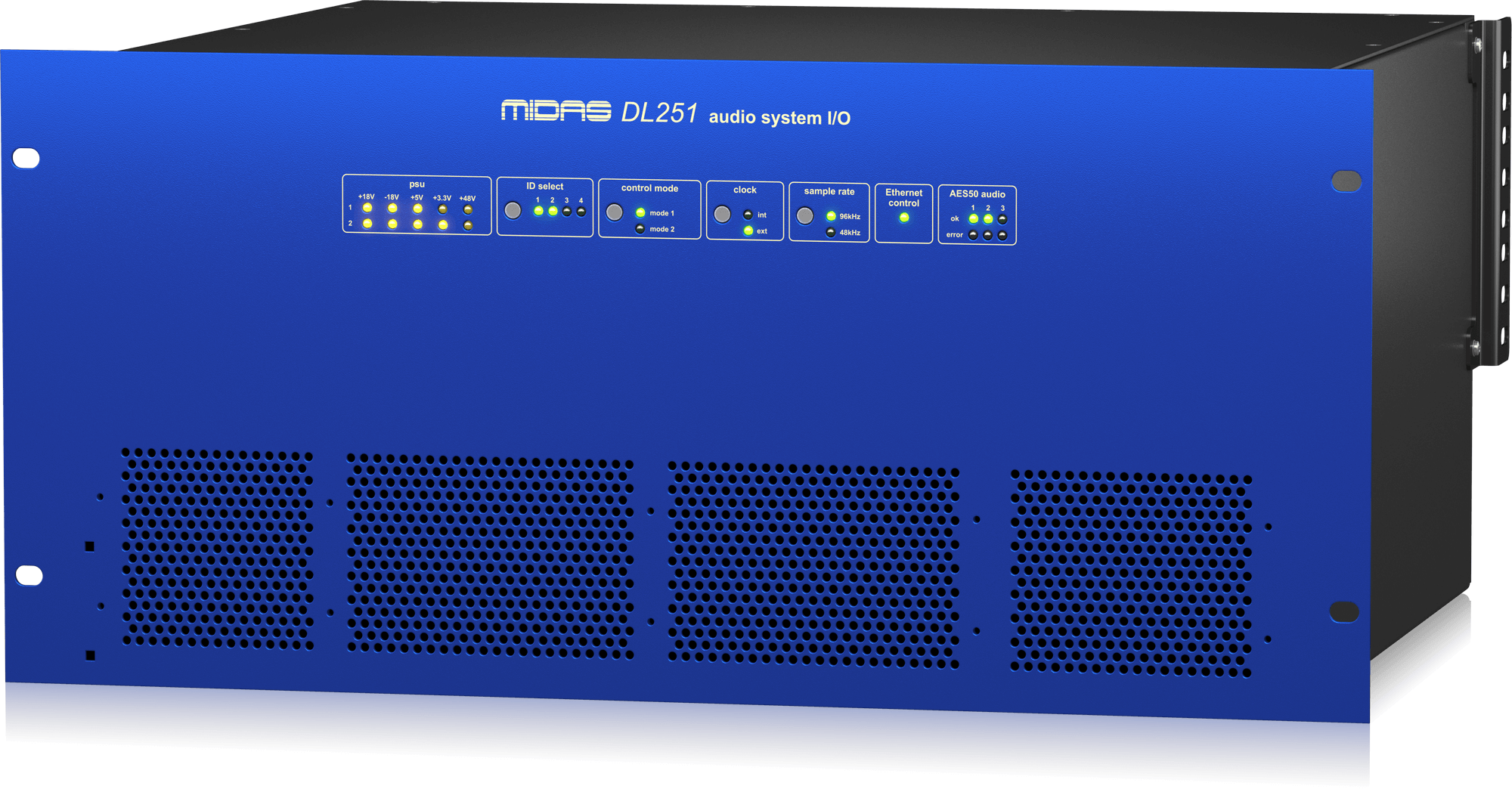

On a busy stage, every microphone needs a home close to the performer. This stage box gives 48 of them a mic/line input, and adds 16 line outputs. It is a 19" rack unit designed for Midas digital systems.
Backups built in

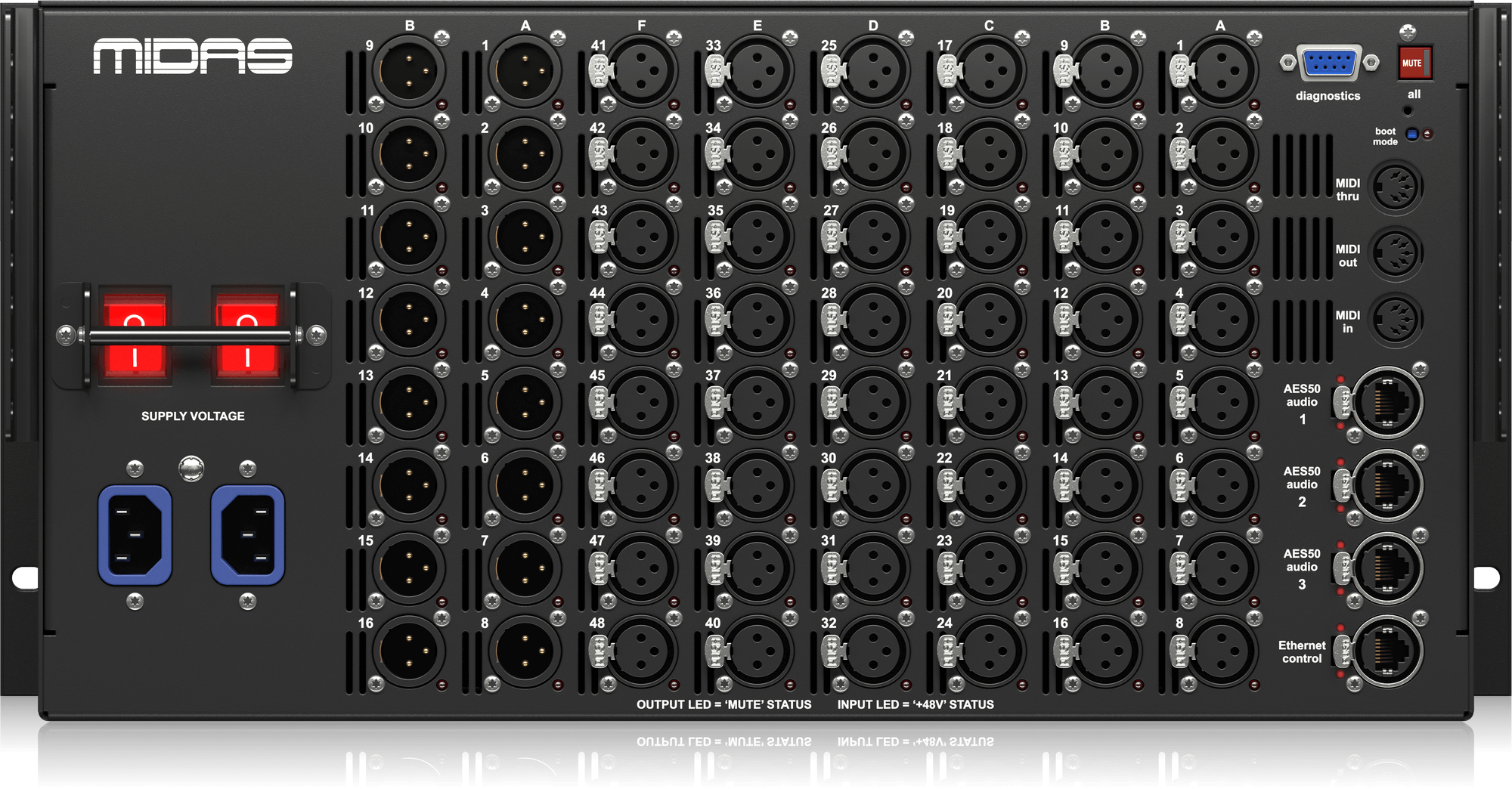

Three AES50 ports on EtherCon XLRs connect it to the console or snake. They are configured for N+1 cable redundancy. Two redundant power supplies each have dual locking mains connectors.
Mute to repatch, control over Ethernet

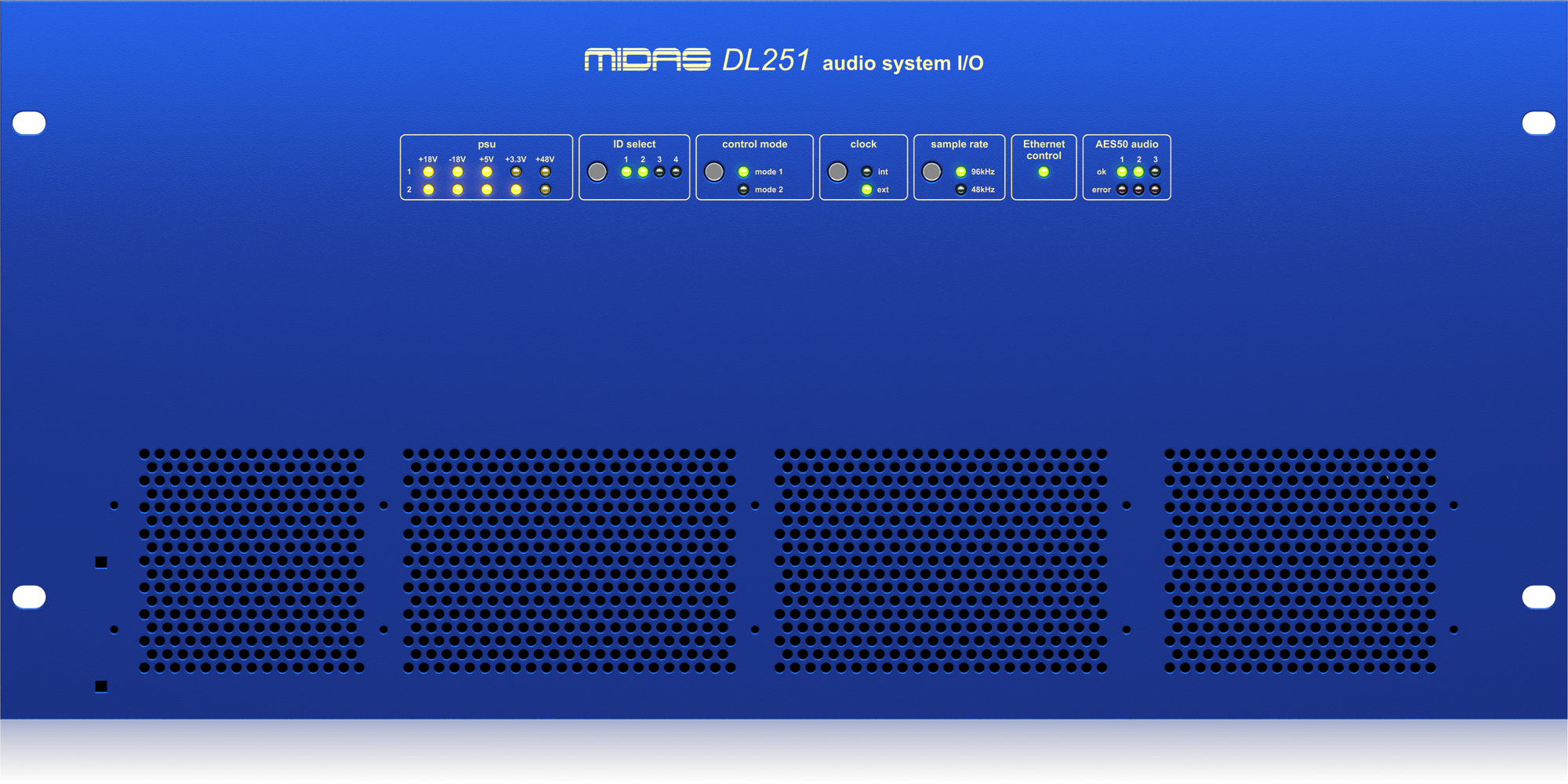

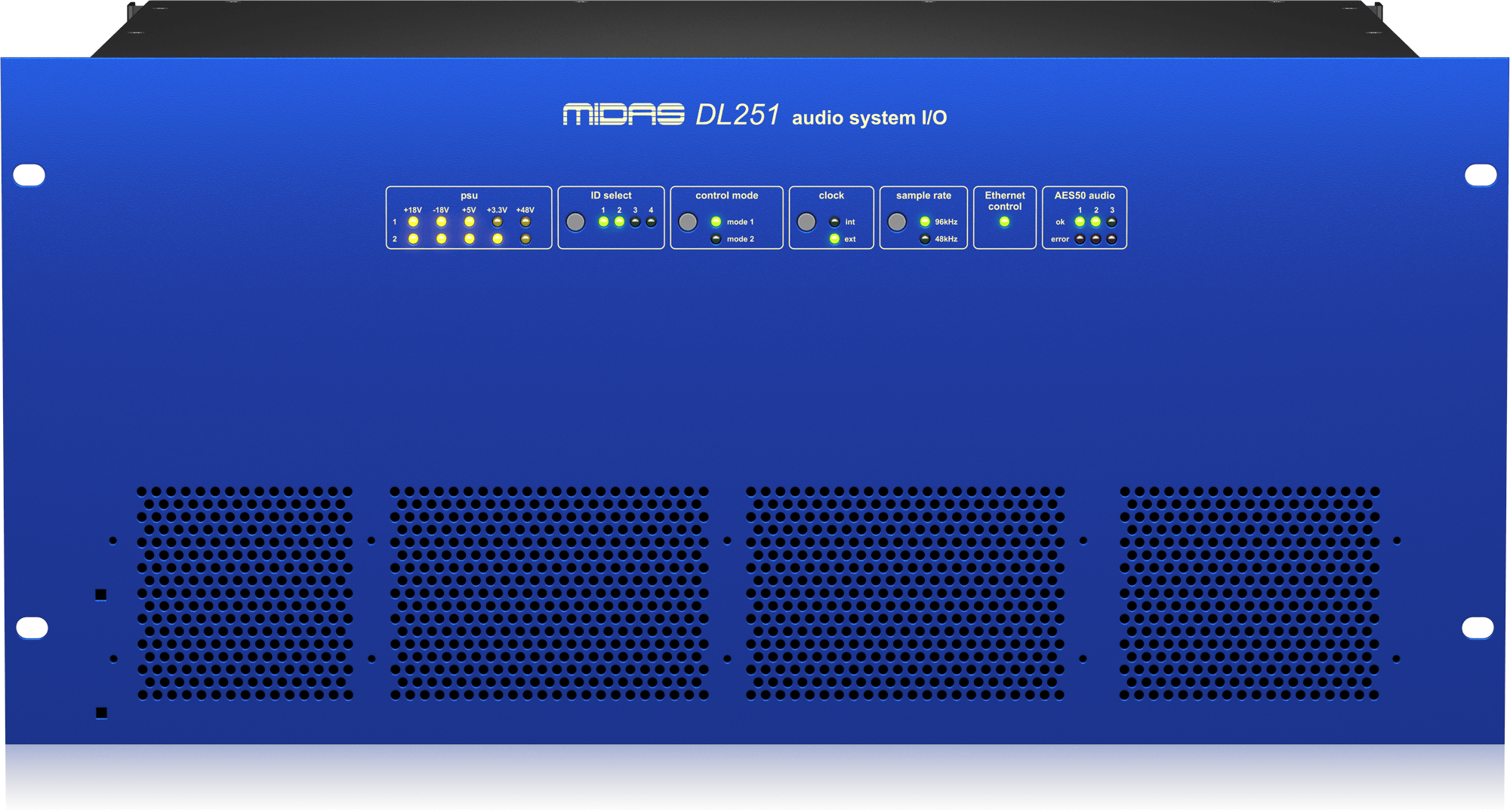

Gain runs from -2.5 dB to +45 dB in 2.5 dB steps. Hold the rear MUTE button for over a second to mute all outputs while you repatch on stage. Front panel LEDs show the operating and configuration status. Ethernet control runs over Cat 5e cable up to 100 m.
