The mixing desk can stay in the rack.

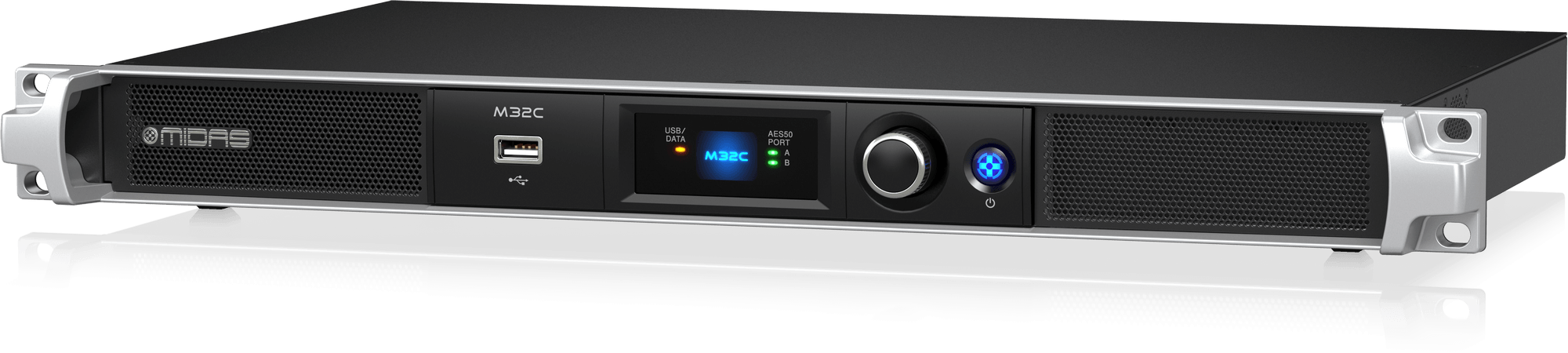

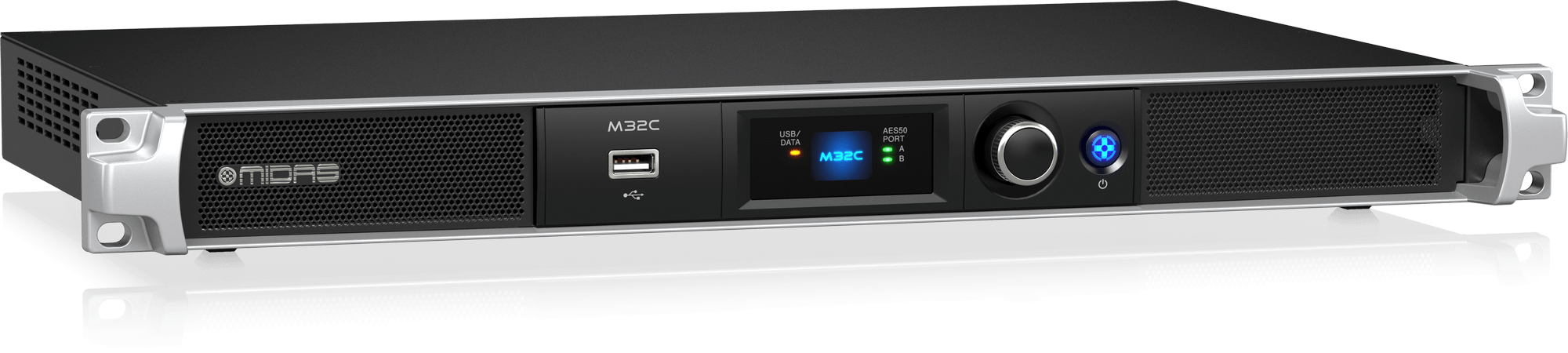

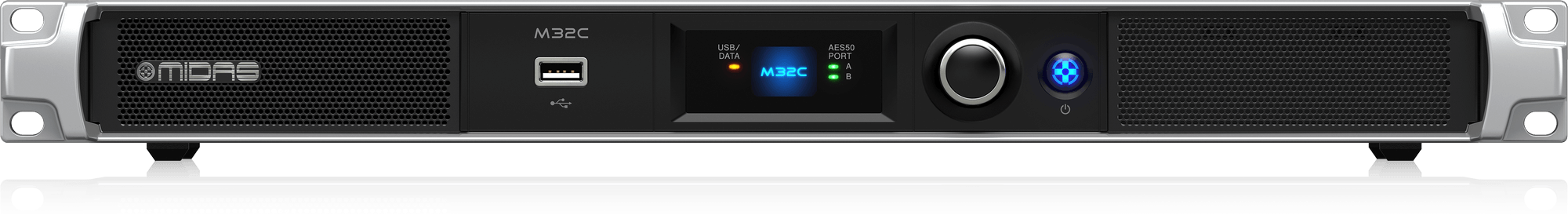

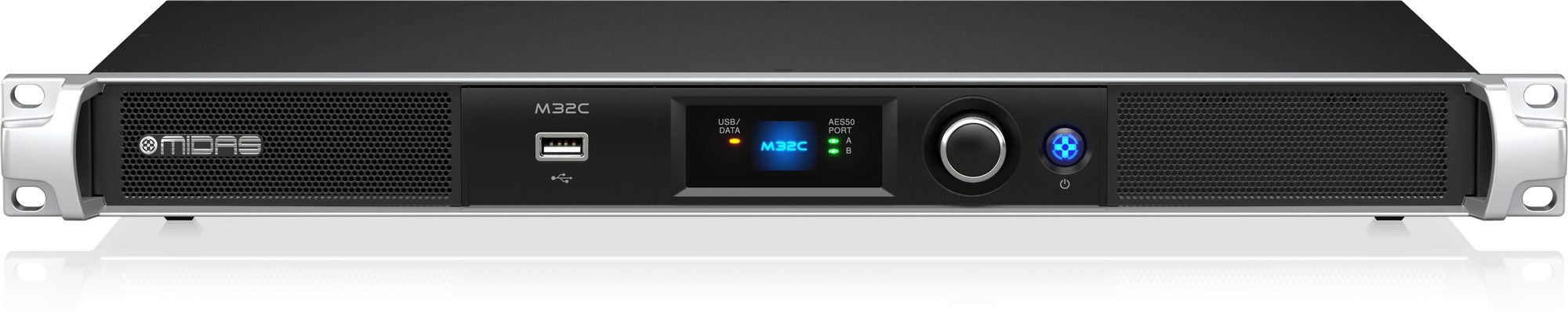

Some rooms have no space for a console, and some rigs travel in a single rack. The M32C brings all of the basic functionality and processing of the Midas M32 console into a smaller form factor. Pair it with a DL16 digital stagebox. Then mix from an iPad with the M32-Mix app, or from a computer with M32-Edit.
Stagebox inputs and P16 monitor feeds from one rack.

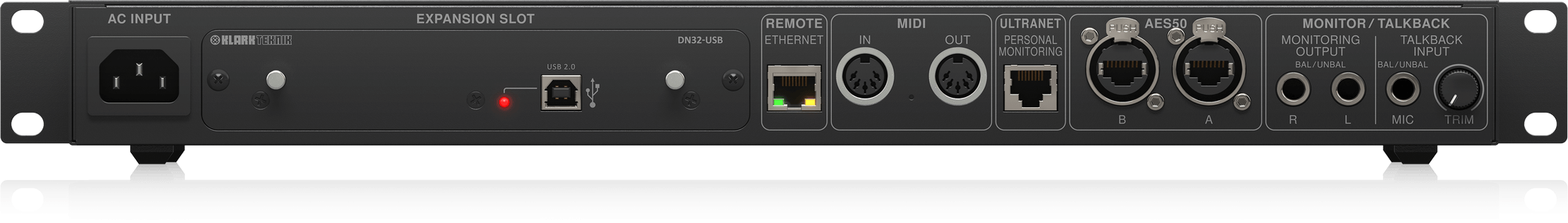

Two AES50 ports with Klark Teknik SuperMAC carry 96 channels of bidirectional audio. They connect to DL16 digital snakes or other M32 family products. Network latency, stagebox in to stagebox out, is 1.1 ms, excluding insert effects and line delays. A P16 monitoring system gets 16 channels from the ULTRANET connector.
Processing that replaces the outboard rack.
Eight true-stereo multi-effects processors (16 mono) offer over 60 effect models. Four effects such as delay, chorus and reverb can run alongside eight channels of 31-band graphic EQ. Signal processing is 40-bit floating point.
Every set change, one recall away.
Save and recall entire scenes, so a set or programme change is quick and simple. The M32C holds 100 scenes, including preamp and fader settings. Record and mix on a computer: the USB interface card handles as many as 32 tracks each way. Plug a flash drive into the front USB port to capture a board mix.
